PN: CM5-X2.21 · in production

Compute Module · CM5 · 56 × 41 mm

CM5. The eight-core SoM you can build a product on.

A 56 × 41 mm compute module with the RK3588S2 inside: eight 64-bit cores, a 6 TOPS NPU, Mali-G610 GPU, and three 100-pin board-to-board connectors carrying nearly every signal the silicon exposes. Industrial supply window, schematics in PDF, BSP in our public Yocto layer.

Buy now Datasheet (PDF)

SoCRK3588S2

RAM max32 GB

NPU6 TOPS

Footprint56 × 41 mm

01SKUs · CM5 · CM5 Lite

Same form factor. Two silicon options.

CM5 and CM5 Lite share the carrier and the BSP. Pick CM5 when you need GPU + 8 cores; pick CM5 Lite when 6 cores and no graphics is plenty.

/01

Default

Radxa CM5

SoC: Rockchip RK3588S2
CPU: Quad Cortex-A76 + Quad Cortex-A55
NPU: 6 TOPS
GPU: Mali-G610 MP4
RAM: Up to 32 GB LPDDR4x
eMMC: Up to 128 GB
OS: Debian / Android

/02

Radxa CM5 Lite

SoC: Rockchip RK3582
CPU: Dual Cortex-A76 + Quad Cortex-A55
NPU: 5 TOPS
GPU: —
RAM: Up to 32 GB LPDDR4x
eMMC: Up to 128 GB
OS: Debian

02Block diagram · v2.21

What runs on the three 100-pin connectors.

3 × 100-pin board-to-board connectors carry the full RK3588S2 IO map: PCIe, SATA, USB 3, MIPI CSI/DSI, HDMI, DP, eDP, SDIO, GPIO. Pinout XLSX, schematic PDF, components placement, and 3D STP all on dl.radxa.com.

· Schematic v2.21 (PDF)
· Pinout v2.21 (XLSX)
· Placement map (PDF)
· 2D DXF / 3D STP
· Carrier design note
· Yocto BSP (meta-radxa)

block_diagram_cm5.webp · v2.21

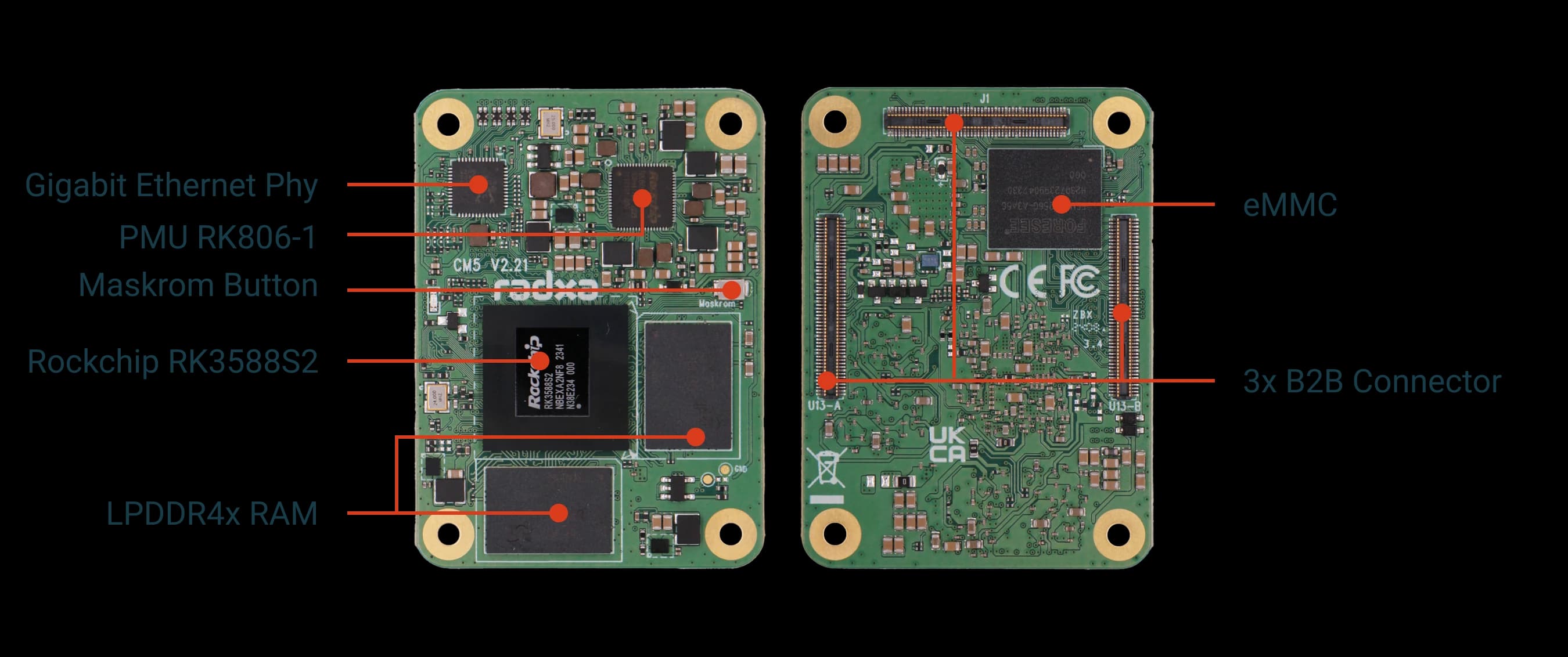

03Interfaces · annotated

Every signal marked.

HDMI: 8K @ 60 Hz · 1×
eDP: 4K @ 60 Hz · 1×
DP: 8K @ 30 Hz · USB-C combo · 1×
MIPI DSI: 2-lane + 4-lane · 1× each

04Front view · top-down

Eight cores in 56 × 41 mm.

RK3588S2 4× Cortex-A76 + 4× Cortex-A55, Mali-G610 MP4 GPU, 6 TOPS NPU, up to 32 GB LPDDR4x and up to 128 GB onboard eMMC. Industrial-grade B2B connectors for repeated mate / unmate.

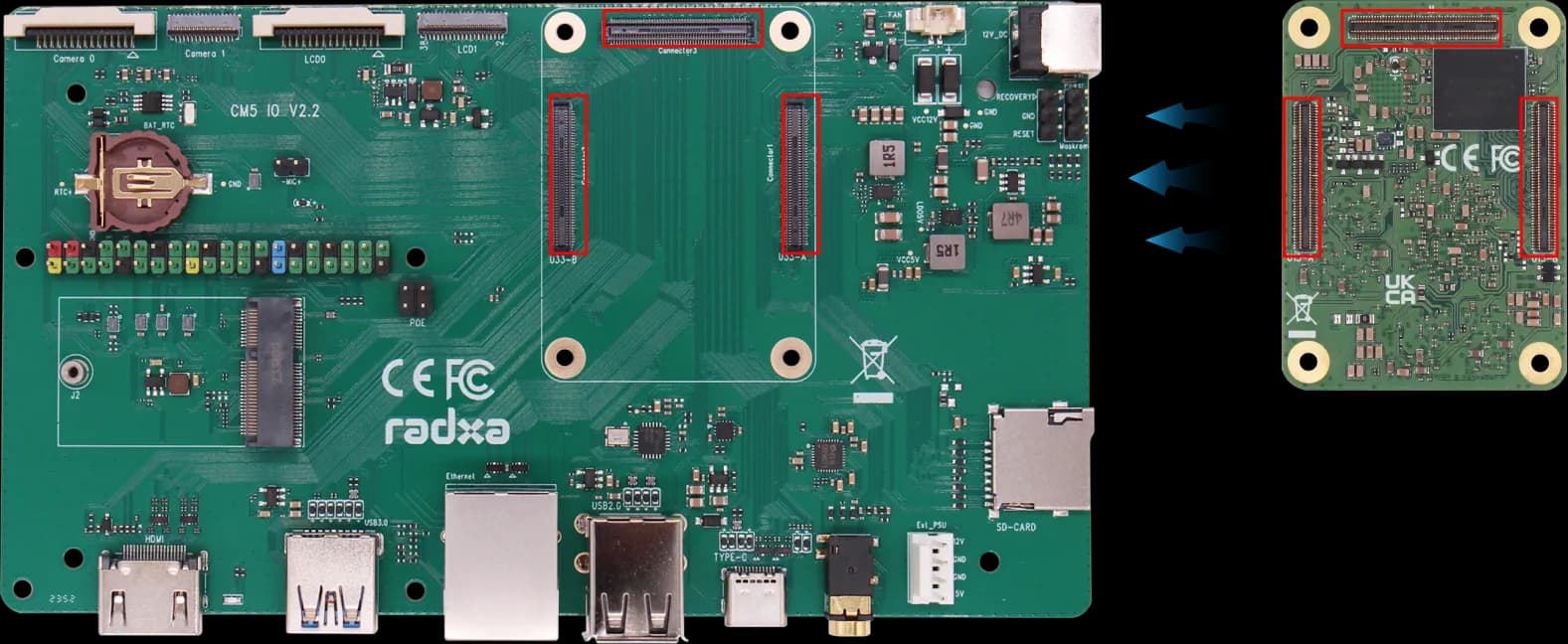

05B2B connectors

3 × 100-pin industrial-grade connectors.

Convenient disassembly and re-mating for service. Same connector family across CM3, CM3I, CM3J, CM4 and CM5, so your carrier ages well.

06Hardware spec · v2.21

The full datasheet, in one table.

Multimedia: H.265 / VP9 8K@60 · H.264 8K@30 · AV1 4K@60 decode · 4K@120 H.264/265 encode
Ethernet: 1× onboard Gigabit Ethernet PHY
Video out: 1× HDMI 8K@60 · 1× eDP 4K@60 · 1× DP 8K@30 · 2-lane + 4-lane MIPI DSI
Video in: 1× 2-lane MIPI CSI · 1× 4-lane MIPI D/C-PHY CSI
USB: 2× USB 2.0 host · 1× USB 3.0 host · 1× USB 3.0 OTG / host
PCIe: 2× PCIe 2.0 ×1 (one shared with USB3 + SATA, one shared with SATA)
SATA: 2× SATA ports (shared with PCIe / USB3)
Audio: Up to 2× I2S · 2× PDM (mic-array) · 2× SPDIF TX
GPIO: Up to 10× UART · 5× SPI · 3× CAN · 7× I²C · 15× PWM
Connector: 3 × 100-pin board-to-board (industrial grade)
Operating temp: 0 → 50 °C (recommended)
Dimensions: 56 × 41 mm

07Software · NPU framework support

Make AI easy with every popular DL framework.

The 6 TOPS NPU exposes ONNX, TensorFlow, TFLite, PyTorch, Caffe and Android NN. Convert with RKNN Toolkit 2. Ultralytics YOLO11 ships with day-zero support.

TensorFlow
Caffe
TFLite
PyTorch
ONNX NN
Android NN
MXNet
RKNN Toolkit 2

08Reference carrier · CM5 IO Board

Functional verification, in an afternoon.

The CM5 IO Board exposes every signal on the module so you can validate the BSP, qualify your firmware, and prototype your carrier with real cables and real loads.

Open IO Board datasheet
